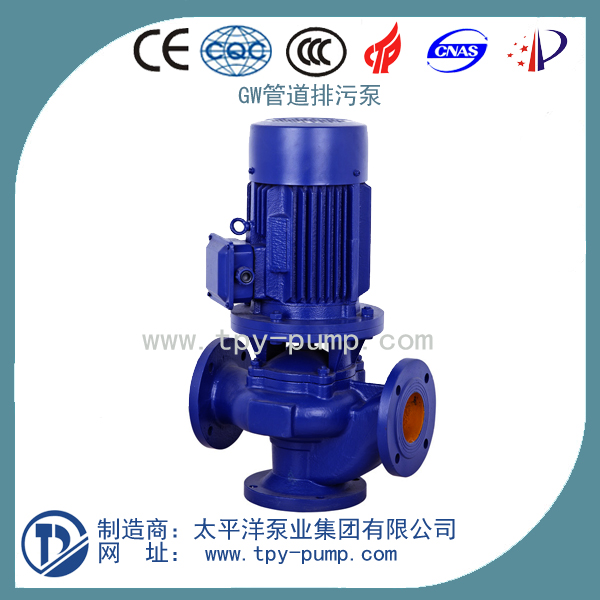

GWP型不銹鋼管道式排污泵
- 型 號：
- 類 別：
- 價 格：￥咨詢
- 產 地：
-
產品詳細介紹
產品描述
GWP型不銹鋼管道式排污泵產品說明：
GWP型不銹鋼管道式排污泵大流道抗堵塞水力部件設計 干式安裝便于維修,機電一體化 占地面積小。GW型管道式排污泵是本司在引進國外先進技術的基礎上，結合國內水泵的使用特點而研制成功的新一代泵類產品，具有節能效果顯著、防纏繞、無堵塞、自動安裝和自動控制等特點，在排送固體顆粒和長纖維垃圾方面，具有獨特效果。
該泵水力性能先進、成熟，產品經性能測試，各項指標均符合有關設計要求。
GWP型不銹鋼管道式排污泵產品特點：
1、GWP型不銹鋼管道式排污泵與電機直聯同軸，屬機電一體化產品，結構緊湊，性能穩定。
2、大流道抗堵塞水力部件設計，大大提高污物通過能力，能有效通過泵口徑的5倍纖維物質和直徑為泵口徑約50%的固體顆粒。
3、設計合理，配套電機合理，效率高，噪音低，節能效果顯著。
4、機械密封采用硬質耐磨碳化鎢，具有耐用、耐磨等特點，可以使泵安全連續運行8000小時以上。
5、泵為立式結構，進出口中心線在同一水平線上，且進出口法蘭規格相同，安裝拆卸十分方便。
6、占地面積小，無需建機房，可節省大量基建費用；在電機風葉端加上防護罩，整機可置于室外工作。
GWP型不銹鋼管道式排污泵產品適用場合：
適用于化工、石油、制藥、采礦、造紙、電廠及城市污水處理、市政工程、公共設施排污等輸送帶顆粒的污水污物。
性能參數
|
型號 |
口徑 |
流量 |
揚程 |
功率 |
轉速 |
效率 |
使用揚 |
|
25GWP8-22-1.1 |
25 |
8 |
22 |
1.1 |
2825 |
38.5 |
10-22 |
|
32GWP12-15-1.1 |
32 |
12 |
15 |
1.1 |
2825 |
40 |
8-15 |
|
40GWP15-15-1.5 |
40 |
15 |
15 |
1.5 |
2840 |
45.1 |
6-15 |
|
40GWP15-30-2.2 |
40 |
15 |
30 |
2.2 |
2840 |
48 |
15-30 |
|
50GWP20-7-0.75 |
50 |
20 |
7 |
0.75 |
1390 |
54 |
3-7 |
|
50GWP10-10-0.75 |
50 |
10 |
10 |
0.75 |
1390 |
56 |
4-10 |
|
50GWP20-15-1.5 |
50 |
20 |
15 |
1.5 |
2840 |
55 |
6-15 |
|
50GWP15-25-2.2 |
50 |
15 |
25 |
2.2 |
2840 |
56 |
10-25 |
|
50GWP18-30-3 |
50 |
18 |
30 |
3 |
2880 |
58 |
15-30 |
|
50GWP25-32-5.5 |
50 |
25 |
32 |
5.5 |
2900 |
53 |
17-32 |
|
50GWP20-40-7.5 |
50 |
20 |
40 |
7.5 |
2900 |
55 |
20-40 |
|
65GWP25-15-2.2 |
65 |
25 |
15 |
2.2 |
2840 |
52 |
6-15 |
|
65GWP37-13-3 |
65 |
37 |
13 |
3 |
2880 |
55 |
6-13 |
|
65GWP25-30-4 |
65 |
25 |
30 |
4 |
2890 |
58 |
15-30 |
|
65GWP30-40-7.5 |
65 |
30 |
40 |
7.5 |
2900 |
56 |
20-40 |
|
65GWP35-50-11 |
65 |
35 |
50 |
11 |
2930 |
60 |
35-50 |
|
65GWP35-60-15 |
65 |
35 |
60 |
15 |
2930 |
63 |
40-60 |
|
80GWP40-7-2.2 |
80 |
40 |
7 |
2.2 |
1420 |
52 |
3-7 |
|
80GWP43-13-3 |
80 |
43 |
13 |
3 |
2880 |
50 |
5-13 |
|
80GWP40-15-4 |
80 |
40 |
15 |
4 |
2890 |
57 |
6-15 |
|
80GWP65-25-7.5 |
80 |
65 |
25 |
7.5 |
2900 |
56 |
12-25 |
|
100GWP80-10-4 |
100 |
80 |
10 |
4 |
1440 |
62 |
4-10 |
|
100GWP110-10-5.5 |
100 |
110 |
10 |
5.5 |
1440 |
66 |
5-10 |
|
100GWP100-15-7.5 |
100 |
100 |
15 |
7.5 |
1440 |
67 |
8-15 |
|
100GWP85-20-7.5 |
100 |
85 |
20 |
7.5 |
1440 |
68 |
10-20 |
|
100GWP100-25-11 |
100 |
100 |
25 |
11 |
1460 |
65 |
10-25 |
|
100GWP100-30-15 |
100 |
100 |
30 |
15 |
1460 |
66 |
12-30 |
|
100GWP100-35-18.5 |
100 |
100 |
35 |
18.5 |
1470 |
65 |
15-35 |
|
125GWP130-15-11 |
125 |
130 |
15 |
11 |
1460 |
62 |
7-15 |
|
125GWP130-20-15 |
125 |
130 |
20 |
15 |
1460 |
63 |
10-20 |
|
150GWP145-9-7.5 |
150 |
145 |
9 |
7.5 |
1440 |
63 |
4-9 |
|
150GWP180-15-15 |
150 |
180 |
15 |
15 |
1460 |
65 |
5-15 |
|
150GWP180-20-18.5 |
150 |
180 |
20 |
18.5 |
1470 |
75 |
8-20 |
|
150GWP180-25-22 |
150 |
180 |
25 |
22 |
1470 |
76 |
12-25 |
|
150GWP130-30-22 |
150 |
130 |
30 |
22 |
1470 |
75 |
15-30 |
|
150GWP180-30-30 |
150 |
180 |
30 |
30 |
1470 |
73 |
15-30 |
|
150GWP200-30-37 |
150 |
200 |
30 |
37 |
1480 |
70 |
13-30 |
|
200GWP300-7-11 |
200 |
300 |
7 |
11 |
970 |
73 |
3-7 |
|
200GWP250-11-15 |
200 |
250 |
11 |
15 |
970 |
74 |
4-11 |
|
200GWP400-10-22 |
200 |
400 |
10 |
22 |
1470 |
76 |
5-10 |
|
200GWP400-13-30 |
200 |
400 |
13 |
30 |
1470 |
73 |
6-13 |
|
200GWP250-15-18.5 |
200 |
250 |
15 |
18.5 |
1470 |
72 |
7-15 |
|
200GWP300-15-22 |
200 |
300 |
15 |
22 |
1470 |
73 |
8-15 |
|
200GWP250-22-30 |
200 |
250 |
22 |
30 |
1470 |
71 |
12-22 |
|
200GWP350-25-37 |
200 |
350 |
25 |
37 |
1980 |
75 |
10-25 |
|
200GWP400-30-45 |
200 |
400 |
30 |
45 |
1480 |
70 |
13-30 |
|
250GWP600-9-30 |
250 |
600 |
9 |
30 |
980 |
74 |
3-9 |
|
250GWP600-12-37 |
250 |
600 |
12 |
37 |
1480 |
78 |
5-12 |
|
250GWP600-15-45 |
250 |
600 |
15 |
45 |
1480 |
75 |
6-15 |
|
250GWP600-20-55 |
250 |
600 |
20 |
55 |
1480 |
73 |
8-20 |
|
250GWP600-25-75 |
250 |
600 |
25 |
75 |
1480 |
73 |
12-25 |
|
250GWP800-12-45 |
250 |
800 |
12 |
45 |
980 |
76 |
5-12 |
|
300GWP500-15-45 |
300 |
500 |
15 |
45 |
980 |
70 |
7-15 |
|
300GWP800-15-55 |
300 |
800 |
15 |
55 |
980 |
73 |
8-15 |
|
300GWP600-20-55 |
300 |
600 |
20 |
55 |
980 |
75 |
10-20 |
|
300GWP800-20-75 |
300 |
800 |
20 |
75 |
980 |
78 |
12-20 |
|
300GWP950-20-90 |
300 |
950 |
20 |
90 |
980 |
80 |
11-20 |
|
300GWP1000-25-110 |
300 |
1000 |
25 |
110 |
980 |
82 |
12-25 |
|
350GWP1100-10-55 |
350 |
1100 |
10 |
55 |
980 |
84.5 |
4-10 |
|
350GWP1500-15-90 |
350 |
1500 |
15 |
90 |
980 |
82.5 |
6-15 |
|
350GWP1200-18-90 |
350 |
1200 |
18 |
90 |
980 |
83.1 |
8-18 |
|
350GWP1100-28-132 |
350 |
1100 |
28 |
132 |
740 |
83.2 |
15-28 |
|
350GWP1000-36-160 |
350 |
1000 |
36 |
160 |
740 |
78.5 |
20-36 |
|
400GWP1500-10-75 |
400 |
1500 |
10 |
75 |
980 |
82.1 |
3-10 |
|
400GWP2000-15-132 |
400 |
2000 |
15 |
132 |
740 |
85.5 |
6-15 |
|
400GWP1700-22-160 |
400 |
1700 |
22 |
160 |
740 |
82.1 |
10-22 |
|
400GWP1500-26-160 |
400 |
1500 |
26 |
160 |
740 |
83.5 |
12-26 |
|
400GWP1700-30-200 |
400 |
1700 |
30 |
200 |
740 |
83.5 |
15-30 |
|
400GWP1800-32-250 |
400 |
1800 |
32 |
250 |
740 |
82.1 |
17-32 |

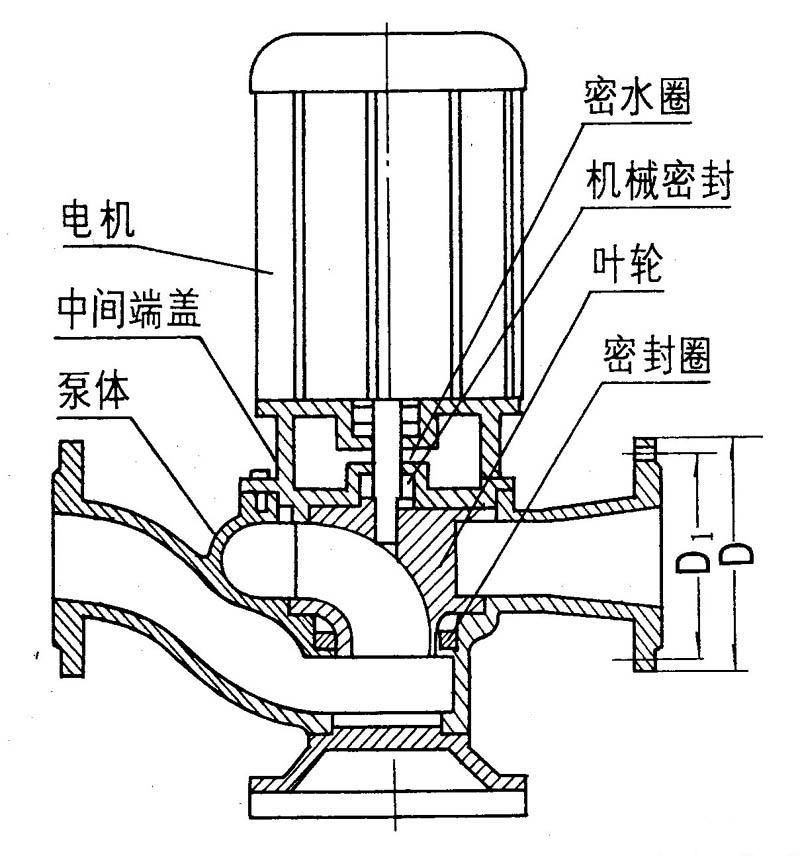

產品結構
